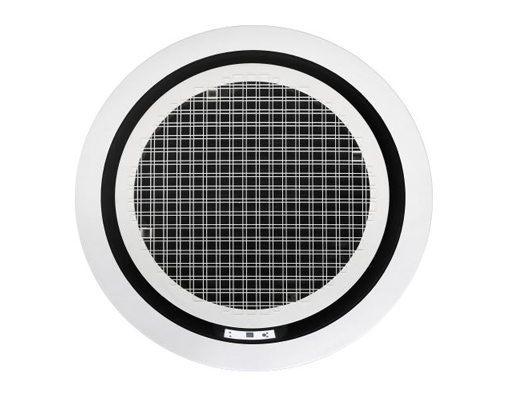

360o Round Cassette FCU

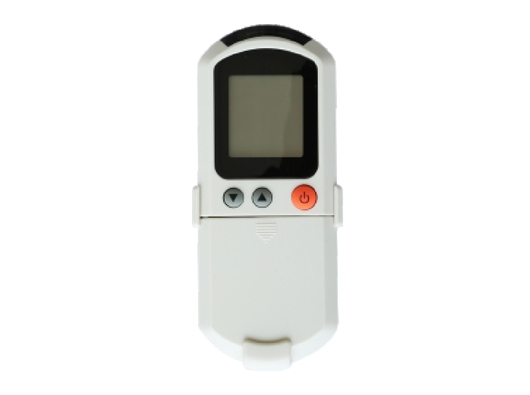

1. Wireless remote controller is standard;

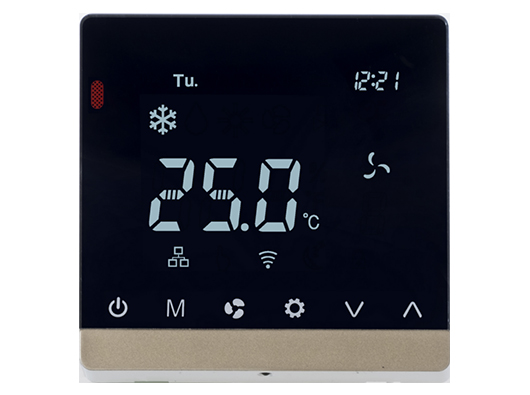

2. Wired wall controller is optional;
3. Auto reset, operation mode control; with room sensor & coil sensor;
4. daily timer or weekly timer
5.auto-diagnose, protections and error code disply; jumpers configurations on electronic board
6. RS485 ModBus, master-slave network control-Optional

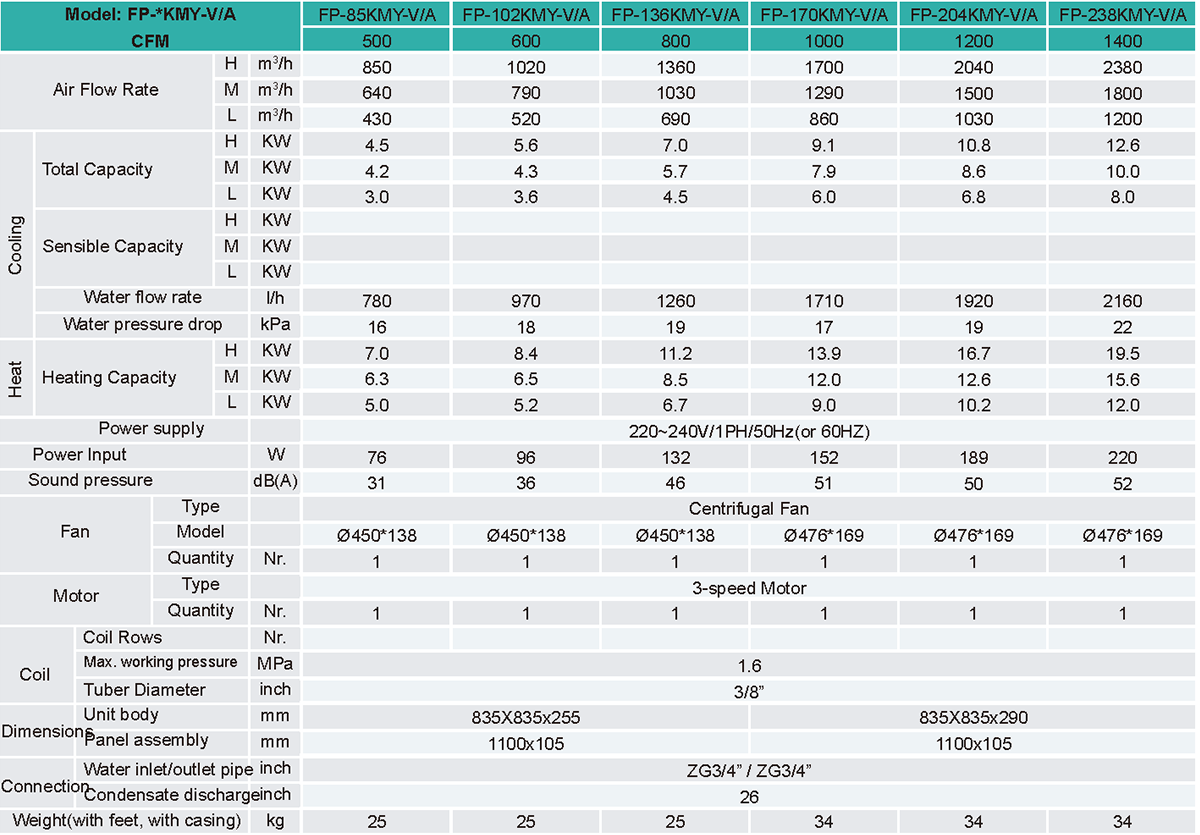

Advantagestechnical parameter

Round Cassette with an innovative 360° airflow ensures optimal air conditioning which also eliminates dead zones. 360 degree directional wind coming out from circular heat exchanger can deliver air evenly throughout every corner in any space.


Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation.


Panel Assembly-with digital LED display
Aesthetic panel design, in ABS material with synthetic washable and removal air filter and equipped with digital LED display.


Plastic Wheel-Quite running
One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration, low noise on the wheels and motors. Each wheel will be balanced under G0.5mm/s.


Fresh air intake
Fresh air intake is sandard for for the unit


Circular Heat Exchanger

High efficiency circular coil are made of copper tubes and high exchange surface area aluminum blue fins. With built-in EEV, external EEV is optional.


Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a condensates draining pump and a safety float.


Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.
